Характеристики
| Op Amp Type | General Purpose |
| No. of Amplifiers | 1 |
| Bandwidth | 2.8MHz |
| Slew Rate | 2.3V/µs |
| Supply Voltage Range | 2.7V to 5.5V |
| Amplifier Case Style | DIP |
| No. of Pins | 8 |
| Operating Temperature Range | -40°C to +85°C |
| SVHC | No SVHC (19-Dec-2011) |
| Amplifier Type | CMOS |
| Base Number | 603 |
| Gain Bandwidth | 2.8MHz |
| I/O Type | Rail-Rail Outputs |
| IC Generic Number | 603 |
| Input Offset Voltage Max | 2mV |
| Logic Function Number | 603 |
| Operating Temperature Max | 85°C |
| Operating Temperature Min | -40°C |
| Package / Case | DIP |
| Slew Rate | 2.3V/µs |
| Supply Voltage + Nom | 5.5V |
| Supply Voltage Max | 6V |
| Supply Voltage Min | 2.7V |
| Termination Type | Through Hole |

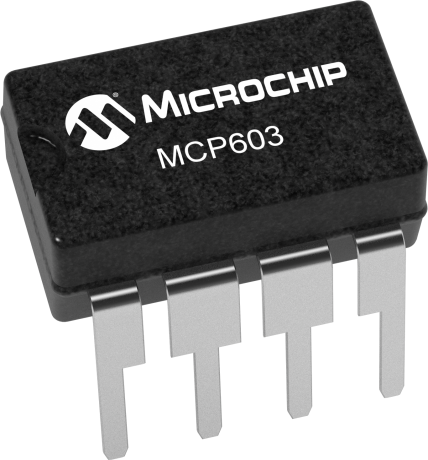

MCP603-I/PMicrochipAmplifiers - Op Amps, Buffer, Instrumentation
