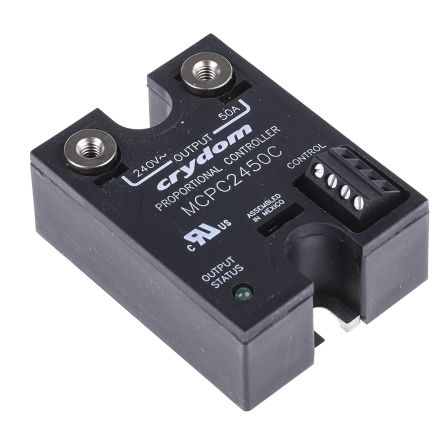

MCPC2450C
Sensata
Solid State Relays
RELAY, S/S, PROP CONTROL, 50A, 240VAC
Характеристики
| Control Voltage Range | 8V DC to 32V DC |
| Operating Voltage Range | 180Vrms to 280Vrms |
| Load Current | 50A |
| Relay Terminals | Screw |
| SVHC | No SVHC (20-Jun-2011) |
| Blocking Voltage | 600V |
| Control Current Max | 30mA |
| Control Current Min | 28mA |
| Control Voltage DC Max | 32V |
| Control Voltage DC Min | 8V |
| Control Voltage Type | DC |
| External Depth | 58.4mm |
| External Length / Height | 19.8mm |
| External Width | 45.7mm |
| I2t | 1620s |
| Input Voltage Max | 10VDC |
| Input Voltage Min | 0V |
| Insulation Resistance | 1000Mohm |
| Isolation Voltage | 4kV |
| Leakage Current | 7mA |
| Load Current Max | 50A |
| Load Current Min | 150mA |
| Load Current RMS Max | 50A |
| Operating Temperature Max | 80°C |
| Operating Temperature Min | -20°C |
| Output Type | SCR |
| RMS Load Current Min | 150mA |
| RMS Load Voltage Max | 280V |
| RMS Load Voltage Min | 180V |
| Rate of Voltage Change dv / dt | 200V/µs |
| Series | MCPC |
| Surge Current | 625A |
| Terminal Type | Screw |
| Termination Type | Screw |
| Voltage Drop @ Rated Current | 1.6V |
