Характеристики
| Trip Current A | 1.8 |
| Time to Trip Max. s | 7.2 |
| Wire Diameter mm | 0.5 |
| Passive Aging | 85°C @ 1000h, ±5% |
| Operating Temperature Max. °C | 85 |
| Operating Temperature Min. °C | -40 |
| Thermal Shock Max. °C | 85 |
| Resistance Min. mOhm | 140 |
| Voltage Rating V | 60 |
| Resistance Max. mOhm | 310 |
| Thermal Shock Min. °C | -40 |
| Humidity Aging | 85°C @ 1000 h, ±5 % |

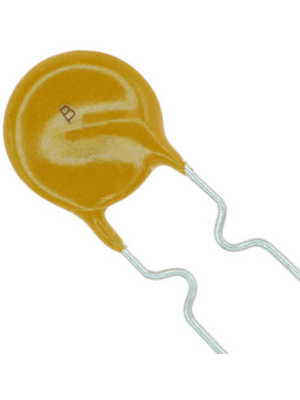

MF-R090BournsPTC Resettable Fuses
