Характеристики
| Ambient Temperature Max. °C | 85 |
| Ambient Temperature Min. °C | -40 |
| Width mm | 1.1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Resistance Max. Ohm | 1 |
| Voltage Rating V | 60 |
| Rated Current A | 10 |
| Resistance Min. mOhm | 200 |
| Length mm | 5.4 |
| Trip Current A | 1.2 |
| Height mm | 4.9 |
| Storage Temperature Max. °C | 40 |
| Holding Current @ 23 °C mA | 550 |

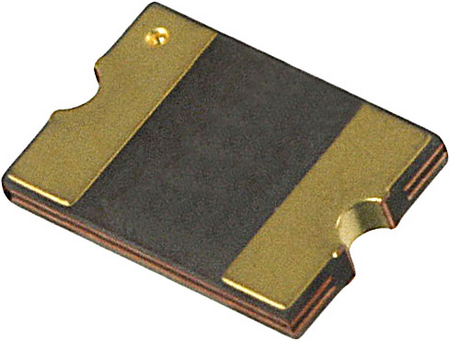

MF-SMDF050-2BournsPTC Resettable Fuses
