Характеристики
| Outputs | 1 |
| Fixed Output Voltage V | 3.3 |
| Dropout Voltage mV | 380 |
| Output Current mA | 150 |
| Load Regulation % | 1 |
| Line Regulation % | 0.3 |
| Supply Voltage Min. V | 2.5 |
| Supply Voltage Max. V | 5.5 |
| Accuracy % | 3 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 125 |
| Package Type | SC-70 |
| Pins | 5 |
| Mounting Type | SMD |
| Packaging | Tape & Reel |
| Length mm | 2.25 |
| Width mm | 1.35 |
| Height mm | 1 |
| Reflow Temperature Max. °C | 260 |

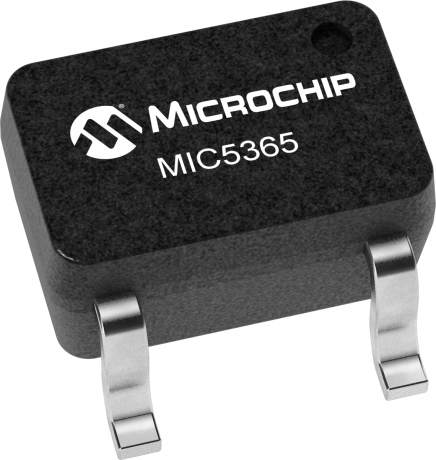

MIC5365-3.3YC5-TRMicrochipLDO Voltage Regulators
