Характеристики
| Frequency Min | 300MHz |
| Frequency Max | 450MHz |
| RF / IF Modulation | ASK, FSK |
| Data Rate | 50Kbps |
| Transmitting Current | 12.5mA |
| RF IC Case Style | MSOP |
| No. of Pins | 10Pins |
| Supply Voltage Min | 1.8V |
| Supply Voltage Max | 3.6V |
| Output Power (dBm) | 10dBm |
| Sensitivity dBm | - |
| RF Transmitter Applications | Remote Keyless Entry Systems (RKE), Tire Pressure Monitoring Systems (TPMS) |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | - |
| RoHS Phthalates Compliant | Yes |
| MSL | - |
| SVHC | No SVHC (15-Jan-2018) |
| Base Number | 112 |
| Frequency Range | 300MHz to 450MHz |
| Modulation Type | ASK, FSK |
| Operating Temperature Range | -40°C to +125°C |
| Output Power | 10dBm |
| Supply Voltage Range | 1.8V to 3.6V |
| Termination Type | Surface Mount Device |

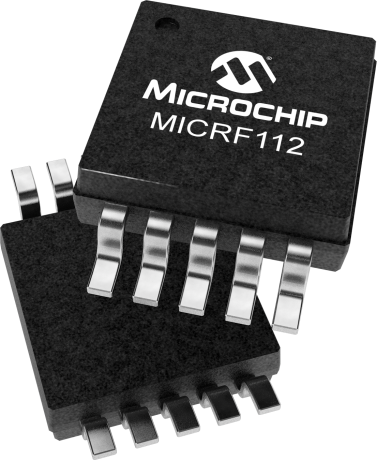

MICRF112YMMMicrochipRF Receivers, Transceivers
