Характеристики
| Device Core | ARM® Cortex® M4 |
| Data Bus Width bit | 32 |
| Instruction Set Architecture | RISC |
| Family Name | Kinetis |
| Clock Frequency Max. MHz | 50 |
| Program Memory Type | Flash |
| Program Memory Size KB | 128 |
| RAM Memory Size KB | 32 |
| Interfaces | I²C |
| Interfaces | SPI |
| Interfaces | UART |
| Interfaces | I²S |
| Interfaces | USB |
| ADC Resolution bit | 16 |
| DAC Resolution bit | 6 |
| Os | 29 |
| Counters | 8 |
| Comparators | 2 |
| Supply Voltage Min. V | 1.71 |
| Supply Voltage Max. V | 3.6 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 105 |
| Package Type | LQFP |
| Pins | 48 |
| Mounting Type | SMD |
| MSL | Level-3 |
| Packaging | Tray |
| Length mm | 7 |
| Width mm | 7 |
| Height mm | 1.4 |
| Reflow Temperature Max. °C | 260 |

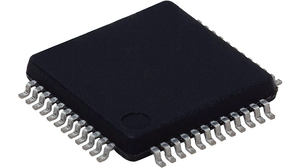

MK22DX128VLF5NXP SemiconductorsMicrocontrollers
