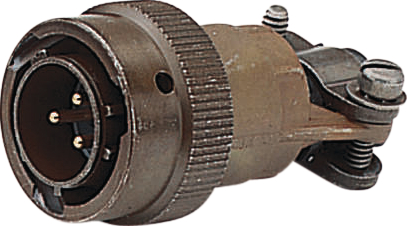

MS3116F10-6S
Amphenol Industrial
Circular Connectors
Характеристики
| Military Specification | MIL-DTL-26482 Series I |
| Shell Type | Plug |
| Mounting Type | Cable Mount |
| Body Orientation | Straight |
| Coupling Method | Bayonet |
| Contacts | 6 |
| Contact Gender | Socket |
| Contact Termination Type | Solder |
| Insert Arrangement | 10-6 |
| Insert Rotation | N |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Shell Material | Aluminium |
| Shell Plating | Cadmium over Olive Drab Chromate |
| Service Class | Environmental Resistant with Strain Relief |
| Voltage Rating VAC | 600 |
| Operating Temperature Min. °C | -55 |
| Operating Temperature Max. °C | 125 |
