Характеристики
| Repetitive Reverse Voltage Vrrm Max | 200V |
| Forward Current If(AV) | 3A |
| Diode Configuration | Single |
| Forward Voltage VF Max | 890mV |
| Reverse Recovery Time trr Max | 35ns |
| Forward Surge Current Ifsm Max | 100A |
| Operating Temperature Max | 175°C |
| Diode Case Style | DO-214AB |
| No. of Pins | 2 Pin |
| Product Range | MURS3 Series |
| Automotive Qualification Standard | AEC-Q101 |
| SVHC | Lead (27-Jun-2018) |
| Alternate Case Style | DO-214AB |
| Current Ifsm | 75A |
| Device Marking | MURS320T3 |
| Diode Type | Fast Recovery |
| Forward Current If Max | 3A |
| Junction Temperature Tj Max | 175°C |
| No. of Pins | 2Pins |
| Operating Temperature Min | -65°C |
| Operating Temperature Range | -65°C to +175°C |
| Reverse Recovery Time trr Typ | 25ns |

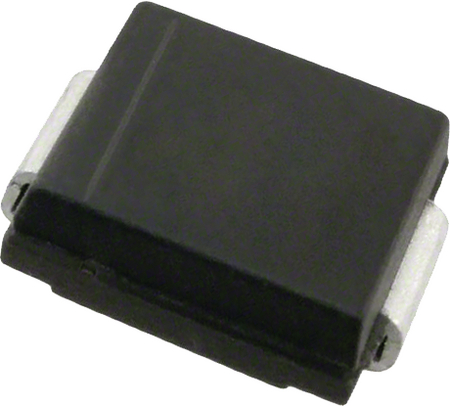

MURS320T3GonsemiRectifier Diodes
