Характеристики
| Rated Power W | 90 |
| Output Voltage DC Max. V | 12 |
| Output Voltage DC Min. V | 7.2 |
| Output Current A | 7.5 |
| Supply Voltage AC Max. V | 305 |
| Supply Voltage AC Min. V | 90 |
| Supply Voltage DC Max. V | 431 |
| Supply Voltage DC Min. V | 127 |
| Outputs | 1 |
| Series | NPF-90 |
| Dimmable | No |
| Protection Rating | IP67 |
| MTBF h | 292800 |
| Termination Type | Wire Lead |
| Ripple & Noise (V) mV | 150 |
| Operating Temperature Max. °C | 70 |
| Operating Temperature Min. °C | -40 |
| Width mm | 63 |
| Height mm | 38 |
| Length mm | 171 |

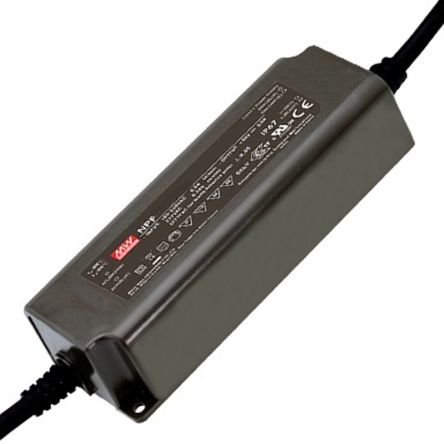

NPF-90-12Mean WellOff-Board Modules
