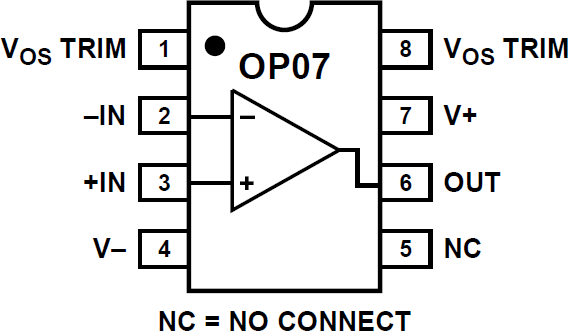

OP07EPZ
Amplifiers - Op Amps, Buffer, Instrumentation
Slew Rate V / Power Supply Rejection Ratio (PSRR) uV / Voltage Gain mV / Input Voltage Noise Density nV
Характеристики
| Amplifier Type | Ultra Low Offset Voltage |
| Gain Bandwidth kHz | 600 |
| us | 0.3 |
| Input Offset Voltage uV | 30 |
| Input Bias Current nA | 1.2 |
| Amplifiers | 1 |
| Common Mode Rejection Ratio (CMRR) dB | 106 |
| V | 5 |
| V | 200 |
| √Hz | 10.3 |
| Supply Current mA | 2.5 |
| Dual Supply Voltage Min. V | 3 |
| Dual Supply Voltage Max. V | 18 |
| Operating Temperature Min. °C | 0 |
| Operating Temperature Max. °C | 70 |
| Package Type | PDIP |
| Pins | 8 |
| Mounting Type | Through Hole |
| Packaging | Tube |
| Length mm | 10.16 |
| Width mm | 7.62 |
| Height mm | 4.95 |
| Power Supply Type | Dual |
