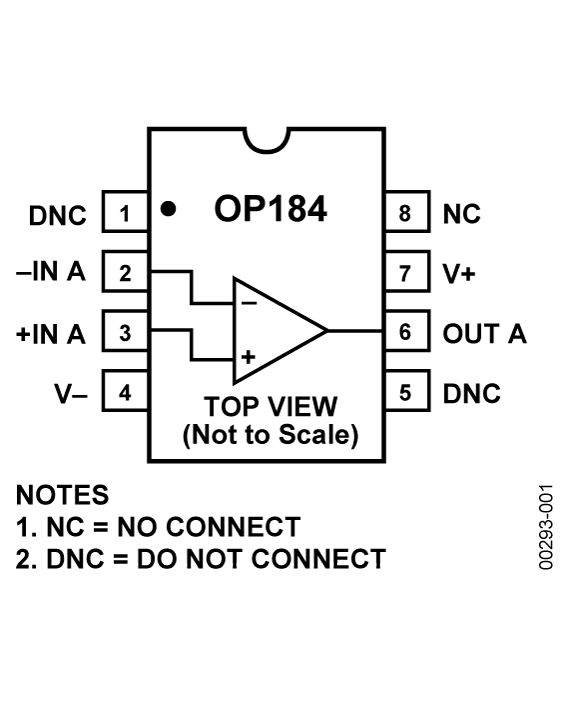

OP184ESZ
Amplifiers - Op Amps, Buffer, Instrumentation
Slew Rate V / Input Voltage Noise Density nV
Характеристики
| Amplifier Type | Precision |
| Gain Bandwidth MHz | 3.3 |
| us | 2.4 |
| Input Offset Voltage uV | 65 |
| Input Bias Current nA | 450 |
| Amplifiers | 1 |
| Common Mode Rejection Ratio (CMRR) dB | 60 |
| Power Supply Rejection Ratio (PSRR) dB | 76 |
| Voltage Gain dB | 107.6 |
| √Hz | 3.9 |
| Output Current per Channel mA | 6.5 |
| Supply Current mA | 1.5 |
| Single Supply Voltage Min. V | 3 |
| Single Supply Voltage Max. V | 36 |
| Dual Supply Voltage Min. V | 1.5 |
| Dual Supply Voltage Max. V | 18 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 125 |
| Package Type | NSOIC |
| Pins | 8 |
| Mounting Type | SMD |
| Packaging | Tube |
| Length mm | 5 |
| Width mm | 4 |
| Height mm | 1.5 |
| Power Supply Type | Dual |
| Power Supply Type | Single |
OP184ESZAnalog DevicesAmplifiers - Op Amps, Buffer, Instrumentation
