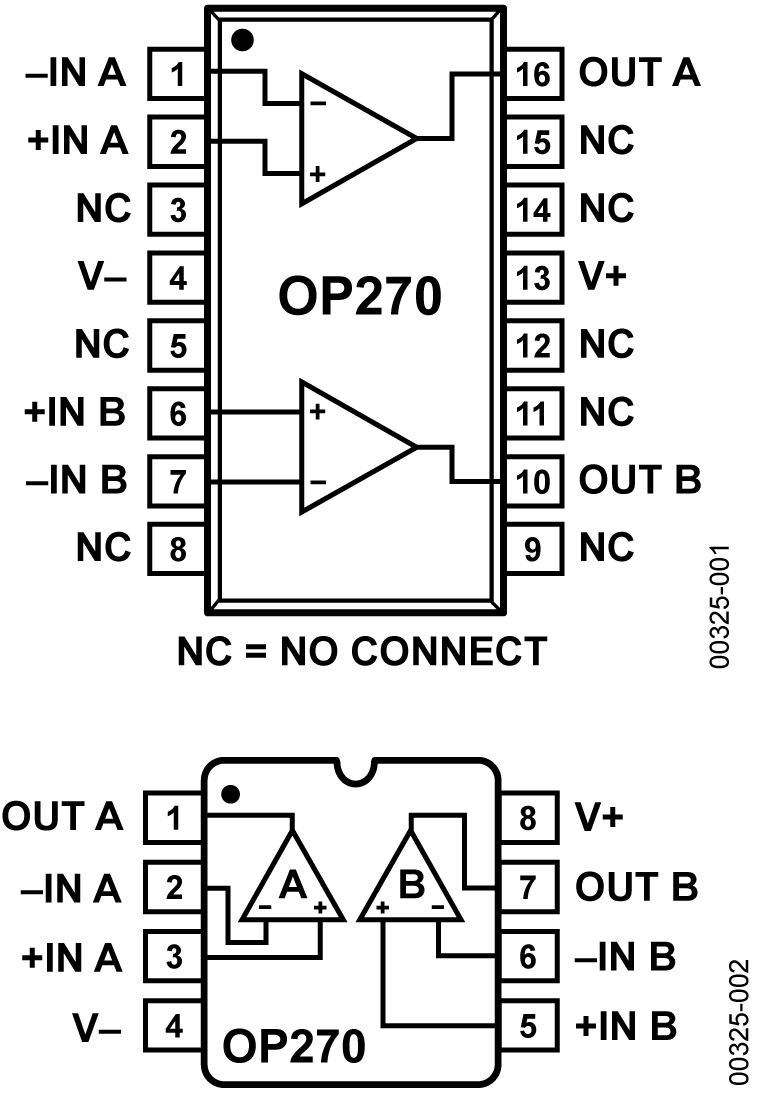

OP270GPZ
Amplifiers - Op Amps, Buffer, Instrumentation
Slew Rate V / Power Supply Rejection Ratio (PSRR) uV / Voltage Gain V / Input Voltage Noise Density nV
Характеристики
| Amplifier Type | Precision |
| Gain Bandwidth MHz | 5 |
| us | 2.4 |
| Input Offset Voltage uV | 50 |
| Input Bias Current nA | 15 |
| Amplifiers | 2 |
| Common Mode Rejection Ratio (CMRR) dB | 100 |
| V | 1.5 |
| mV | 750 |
| √Hz | 3.2 |
| Supply Current mA | 4 |
| Dual Supply Voltage Min. V | 4.5 |
| Dual Supply Voltage Max. V | 18 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |
| Package Type | PDIP |
| Pins | 8 |
| Mounting Type | Through Hole |
| Packaging | Tube |
| Length mm | 10.16 |
| Width mm | 7.62 |
| Height mm | 4.95 |
| Power Supply Type | Dual |
OP270GPZAnalog DevicesAmplifiers - Op Amps, Buffer, Instrumentation
