OP275GSZ
Amplifiers - Op Amps, Buffer, Instrumentation
Slew Rate V / Voltage Gain mV / Input Voltage Noise Density nV
Характеристики
| Amplifier Type | Audio |
| Gain Bandwidth MHz | 9 |
| us | 22 |
| Input Offset Voltage mV | 1 |
| Input Bias Current nA | 100 |
| Amplifiers | 2 |
| Common Mode Rejection Ratio (CMRR) dB | 80 |
| Power Supply Rejection Ratio (PSRR) dB | 85 |
| V | 250 |
| √Hz | 6 |
| Supply Current mA | 4 |
| Dual Supply Voltage Min. V | 4.5 |
| Dual Supply Voltage Max. V | 22 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |

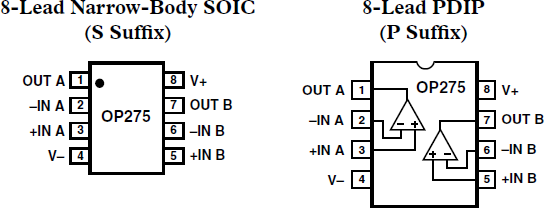

| Package Type | NSOIC |
| Pins | 8 |
| Mounting Type | SMD |
| MSL | Level-1 |
| Packaging | Tube |
| Length mm | 5 |
| Width mm | 4 |
| Height mm | 1.5 |
| Power Supply Type | Dual |
| Reflow Temperature Max. °C | 260 |
OP275GSZAnalog DevicesAmplifiers - Op Amps, Buffer, Instrumentation
