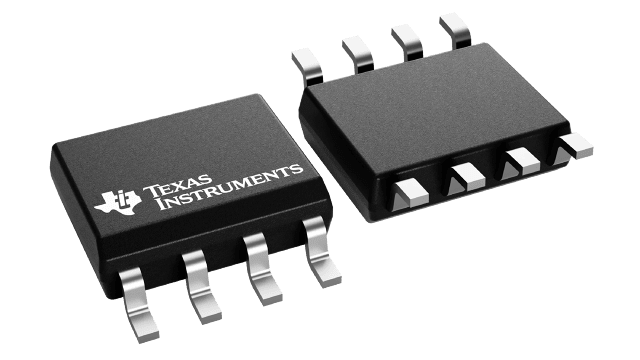

OPA2134PA
Amplifiers - Op Amps, Buffer, Instrumentation
OP AMP, DUAL AUDIO FET I/P, 2134
Характеристики
| Output Power | - |
| Amplifier Class | A |
| No. of Channels | 2 Channel |
| Supply Voltage Range | ± 2.5V to ± 18V |
| Amplifier Case Style | DIP |
| No. of Pins | 8Pins |
| Load Impedance | 2kohm |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | OPAx134 Series |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
| SVHC | No SVHC (27-Jun-2018) |
| Amplifer Supply Voltage | ± 2.5V to ± 18V |
| Amplifier Type | Audio |
| Bandwidth | 8MHz |
| Base Number | 2134 |
| Device Marking | OPA2134PA |
| Gain Bandwidth | 8MHz |
| Input Offset Voltage Max | 3mV |
| Load Impedance Min | 600ohm |
| Logic Function Number | 2134 |
| No. of Amplifiers | 2Amplifiers |
| No. of Channels | 2Channels |
| Op Amp Type | Low Noise |
| Operating Temperature Range | -40°C to +85°C |
| Output Power (Pout) | -000mW |
| Supply Voltage + Nom | 15V |
| Supply Voltage Max | 18V |
| Supply Voltage Min | 2.5V |
| THD + N | 0.00008% @ 2kohm, VS=± 15V |
| Termination Type | Through Hole |
