Характеристики
| Direction Type | Uni-Directional |
| Reverse Stand-off Voltage Max. V | 30 |
| Clamping Voltage V | 48.4 |
| Peak Pulse Power Dissipation W | 600 |
| Peak Pulse Current A | 12.4 |
| Breakdown Voltage Min. V | 33.3 |
| Breakdown Voltage Max. V | 36.9 |
| Operating Temperature Max. °C | 150 |
| Operating Temperature Min. °C | -50 |
| Reverse Leakage Current Max. uA | 5 |
| Pins | 2 |
| Package Type | DO-214AA |
| Mounting Type | SMD |
| MSL | Level-1 |
| Packaging | Tape & Reel |
| Reflow Temperature Max. °C | 260 |

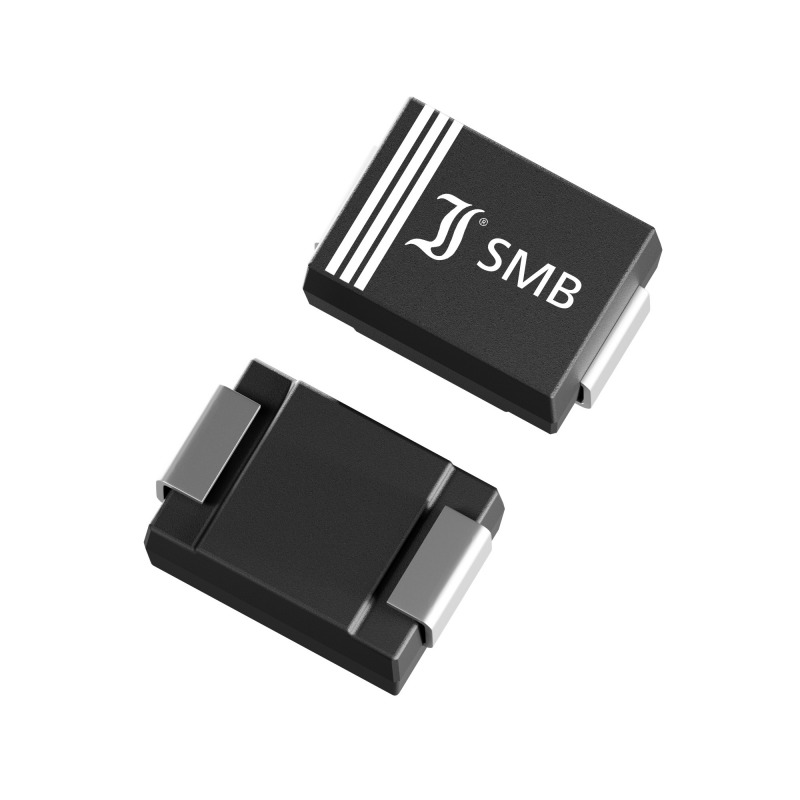

P6SMBJ30ADiotecTVS Diodes
