Характеристики
| Track Resistance | 10kohm |
| Track Taper | Linear |
| No. of Turns | 1 |
| Shaft Diameter | 6mm |
| Shaft Length - Metric | 25mm |
| Resistance Tolerance | ± 10% |
| Voltage Rating | 600V |
| Power Rating | 3W |
| Potentiometer Mounting | Panel |
| No. of Gangs | 1 |
| Adjustment Type | Shaft |
| SVHC | No SVHC (18-Jun-2012) |
| Body Diameter | 19.7mm |
| Contact Resistance Variation + | 3% |
| Electrical Angular Rotation Tolerance + | 10° |
| Electrical Angular Rotation Tolerance - | 10° |
| External Length / Height | 11.5mm |
| Full Power Rating Temperature | 70°C |
| Mechanical Angular Rotation Tolerance + | 5° |
| Mechanical Angular Rotation Tolerance - | 5° |
| Mounting Type | Panel |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -55°C |
| Operating Temperature Range | -55°C to +125°C |
| Proof Voltage | 2500V |
| Resistance | 10kohm |
| Resistor Element Material | Variable Rotary Cermet |
| Rotation Electrical Angle | 270° |
| Rotation Mechanical Angle | 300° |
| Series | PE30 |
| Temperature Coeff. + | 100ppm/°C |
| Temperature Coeff. - | 100ppm/°C |
| Temperature Coefficient | ± 100ppm/°C |

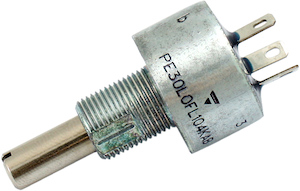

PE30L0FL103KABVishayVariable Resistors and Potentiometers
