Характеристики
| Output Power Max | 10.8W |
| Output Voltage Min | 900mV |
| Output Voltage Max | 3.6V |
| Output Current Max | 3A |
| DC / DC Converter Output Type | Adjustable |
| DC / DC Converter Type | DIP |
| Input Voltage DC Min | 3V |
| Input Voltage DC Max | 5.5V |
| Height | 7.81mm |
| Depth | 12.57mm |
| Width | 10.16mm |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2018) |
| Accuracy % | 2% |
| Adjustable Output Voltage Max | 3.6V |
| Adjustable Output Voltage Min | 0.9V |
| DC / DC Converter Mounting | Through Hole |
| Frequency | 700kHz |
| Input Voltage Max | 5.5V |
| No. of Outputs | 1Outputs |
| No. of Pins | 5Pins |
| Operating Temperature Max | 85°C |
| Operating Temperature Min | -40°C |
| Operating Temperature Range | -40°C to +85°C |
| Output Current | 3A |
| Output Voltage | 3.6V |
| Primary Input Voltage | 5.5V |
| Supply Voltage | 5V |
| Supply Voltage Max | 5.5V |
| Supply Voltage Min | 3V |
| Voltage Regulator Type | Adjustable Positive |

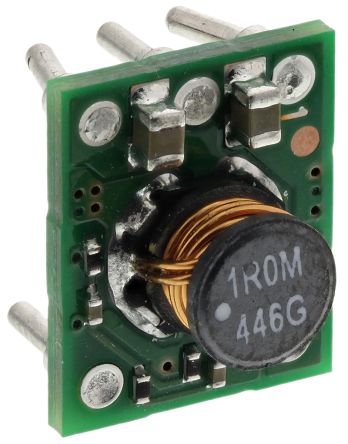

PTH04070WAHTexas InstrumentsBoard Mount Modules
