Характеристики
| Load Voltage Max | 60V |
| Load Current | 4A |
| Contact Configuration | SPST-NO |
| Isolation Voltage | 4kV |
| Forward Current If | 25mA |
| Relay Terminals | Surface Mount |
| SVHC | No SVHC (20-Jun-2011) |
| Approval Category | UL Recognised |
| Contact Configuration | SPST-NO |
| Contact Type | SPNO |
| Control Current Max | 25mA |
| Control Current Min | 5mA |
| Control Voltage DC Max | 6V |
| Current Load AC Max | 7.5A |
| Dielectric Strength VAC | 4000V |
| External Depth | 6.35mm |
| External Length / Height | 3.3mm |
| External Width | 8.38mm |
| Insulation Resistance | 1000Gohm |
| Lead Spacing | 2.54mm |
| Leakage Current | 1µA |
| Load Current DC Max | 15.5A |
| Load Current RMS Max | 4A |
| Load Voltage DC Max | 60VDC |
| Load Voltage DC Min | 0VDC |
| Load Voltage Range | 0V to 60V |
| No. of Pins | 6 |
| On State Resistance Max | 100mohm |
| Operating Temperature Max | 85°C |
| Operating Temperature Min | -40°C |
| Output Type | MOSFET |
| Peak Load Voltage + | 60VAC |
| Peak Load Voltage - | 0VAC |
| Series | PVG612A |
| Terminal Type | Gull Wing |
| Termination Type | SMD |
| Turn Off Time | 0.5ms |
| Turn On Time | 3.5ms |

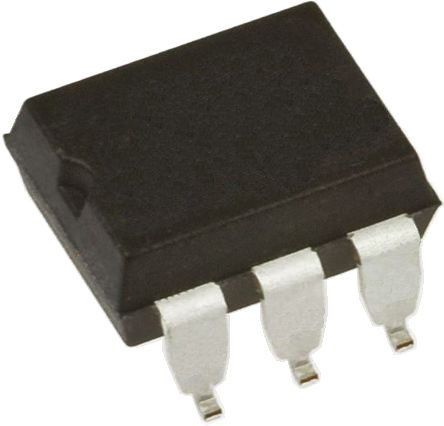

PVG612ASPBFInfineonSolid State Relays
