Характеристики
| Resistor Type | Thick Film |
| Resistance kOhm | 4.7 |
| Tolerance (±) % | 5 |
| Operating Temperature Min. °C | -55 |
| Operating Temperature Max. °C | 155 |
| Power Rating mW | 250 |
| Body Length mm | 3.1 |
| Voltage Rating - DC V | 200 |
| Temperature Coefficient | ±100 ppm |
| Termination Type | Wraparound |
| Body Height mm | 0.5 |
| Body Width mm | 1.6 |
| Mounting Type | SMD |
| Resistor Case Style | 1206 |

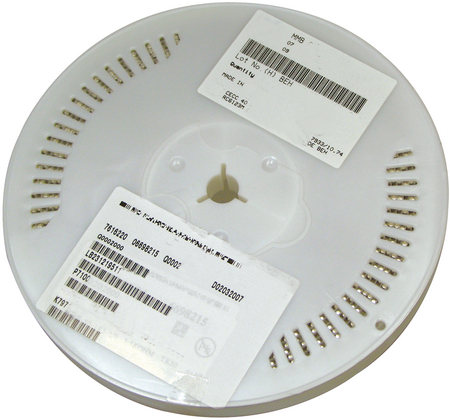

RC1206JR-074K7LYageo GroupChip SMD Resistors
