Характеристики
| Voltage Reference Type | Shunt - Fixed |
| Product Range | REF1004 Series |
| Reference Voltage | 2.5V |
| Initial Accuracy | 20mV |
| Temperature Coefficient | ± 20ppm/°C |
| Voltage Reference Case Style | SOIC |
| No. of Pins | 8Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
| MSL | MSL 3 - 168 hours |
| SVHC | No SVHC (15-Jan-2019) |
| Base Number | 1004 |
| Forward Voltage VF Max | 2.511V |
| Operating Temperature Range | -40°C to +85°C |
| Reference Volt Tolerance ±% | 0.4% |
| Reference Voltage Tolerance | 20mV |
| Reference Volts | 2.5V |
| Temperature Coeff. + | 20ppm/°C |
| Termination Type | Surface Mount Device |
| Tolerance | 0.4% |
| Topology | Shunt |

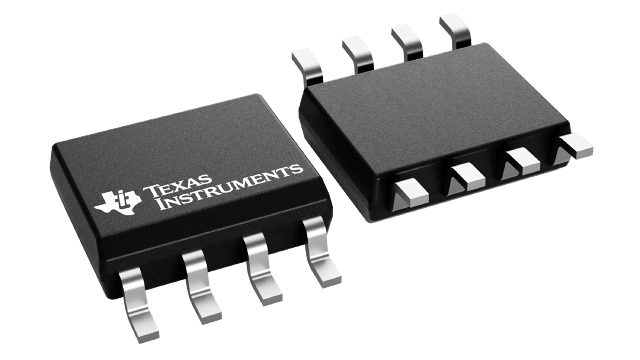

REF1004I-2.5Texas InstrumentsVoltage References
