Характеристики
| Peak Repetitive Off State Voltage | 400V |
| Gate Trigger Current Max | 35Ma |
| Average On State Current | 16A |
| On State Rms Current | 25A |
| No. Of Pins | 3Pins |
| Peak Non Repetitive Surge Current | 300A |
| Msl | - Rohs Compliant: Yes |

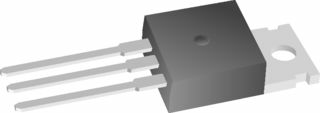

S4025NRPLittelfuseSCRs
| Peak Repetitive Off State Voltage | 400V |
| Gate Trigger Current Max | 35Ma |
| Average On State Current | 16A |
| On State Rms Current | 25A |
| No. Of Pins | 3Pins |
| Peak Non Repetitive Surge Current | 300A |
| Msl | - Rohs Compliant: Yes |
