Характеристики
| Outputs | 1 |
| Output Voltage 1 V | 24 |
| Output Current 1 A | 6.3 |
| Output Type | Adjustable |
| Switching Frequency kHz | 83 |
| Rated Power W | 151.2 |
| Input Voltage Min. V | 19 |
| Input Voltage Max. V | 36 |
| Insulation Voltage kV | 1.5 |
| Protection Type | Over Current Protection |
| Protection Type | Over Voltage Protection |
| Protection Type | Short Circuit Protection |
| Isolation Test | Yes |
| Input EMI Filter | Yes |
| Efficiency % | 77 |
| MTBF h | 419600 |
| Ripple & Noise (V) mV | 150 |
| Frame | Enclosed |
| Housing Material | Steel |
| Mounting Type | Chassis Mount |
| Termination Type | Screw Terminal |
| Operating Temperature Min. °C | -10 |
| Operating Temperature Max. °C | 60 |
| Length mm | 199 |
| Width mm | 110 |
| Height mm | 50 |
| Weight g | 860 |
| Warranty | 2 Years |
| Series | SD-150 |

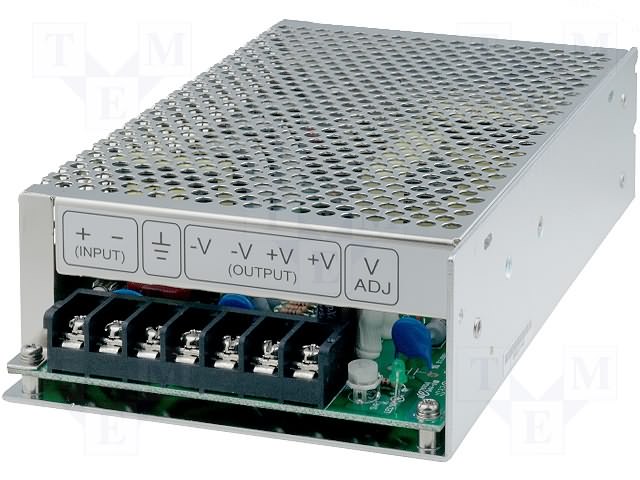

SD-150B-24Mean WellOff-Board Modules
