Характеристики
| TVS Polarity | Unidirectional |
| Reverse Stand-Off Voltage Vrwm | 171V |
| Breakdown Voltage Range | 190V to 210V |
| Clamping Voltage Vc Max | 353V |
| Peak Pulse Current Ippm | 11.3A |
| Diode Case Style | SMB |
| No. of Pins | 2 |
| SVHC | No SVHC (19-Dec-2011) |
| Alternate Case Style | DO-214AA |
| Breakdown Voltage | 200V |
| Breakdown Voltage Max | 210V |
| Breakover Voltage Min | 190V |
| Capacitance Cd @ Vr Typ | 350pF |
| Clamping Voltage @ 8/20µs Max | 353V |
| Diode Configuration | Unidirectional |
| Diode Type | TVS, Unidirectional |
| External Length / Height | 8.2mm |
| Full Power Rating Temperature | 75°C |
| Package / Case | SMB |
| Peak Pulse Power | 600W |
| Power Dissipation Ptot Max | 5W |
| Power Rating | 1.5kW |
| Reverse Leakage Current Max | 1µA |
| Stand-off Voltage | 171V |
| Termination Type | SMD |
| Test Current | 1mA |
| Uni / Bi Directional Polarity | Unidirectional |

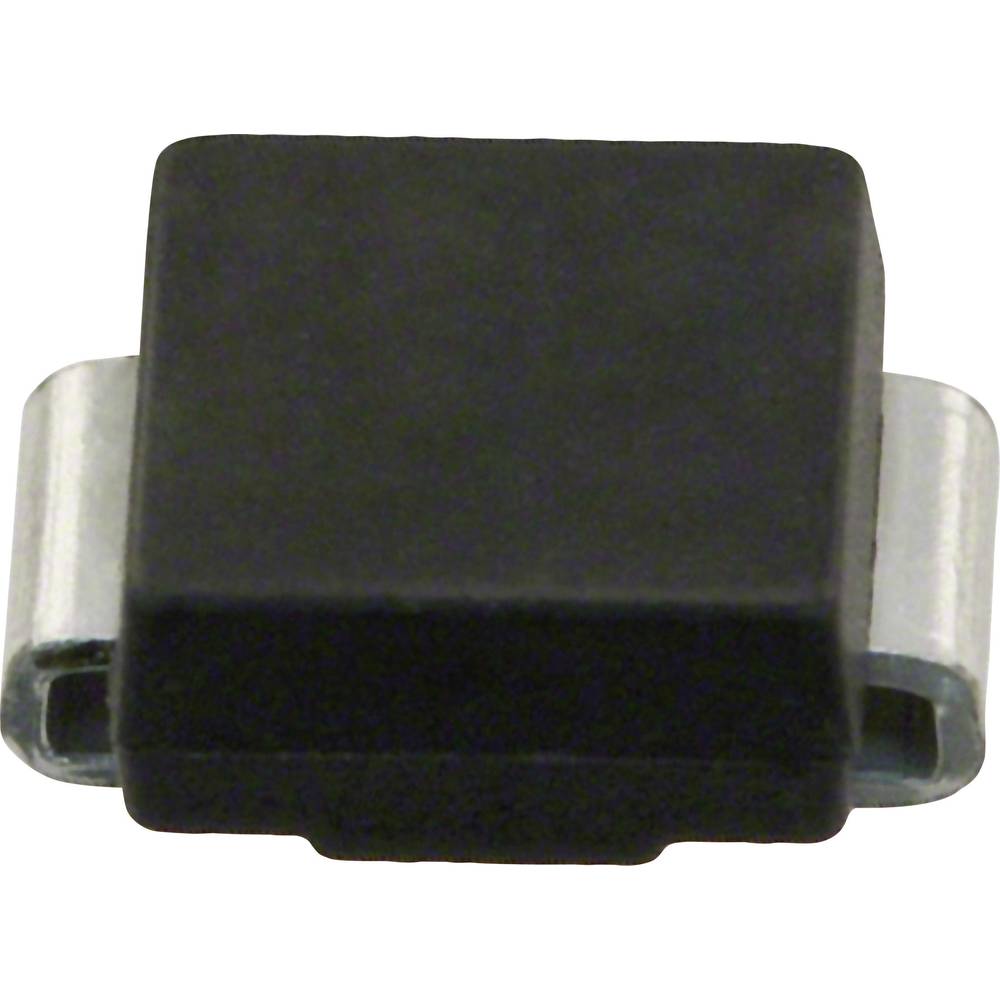

SM6T200ASTMicroelectronicsTVS Diodes
