Характеристики
| Product Range | Transil SM6T Series |
| TVS Polarity | Bidirectional |
| Reverse Stand-Off Voltage Vrwm | 20.5V |
| Clamping Voltage Vc Max | 33.2V |
| Diode Case Style | SMD |
| No. of Pins | 2Pins |
| Breakdown Voltage Min | 22.8V |
| Breakdown Voltage Max | 25.2V |
| Peak Pulse Power Dissipation | 600W |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (15-Jan-2018) |
| Alternate Case Style | DO-214AA |
| Breakdown Voltage | 24V |
| Breakdown Voltage Range | 22.8V to 25.2V |
| Breakover Voltage Min | 22.8V |
| Capacitance Cd @ Vr Typ | 1250pF |
| Clamping Voltage @ 8/20µs Max | 42.8V |
| Diode Type | Bidirectional TVS |
| Peak Pulse Current Ippm | 18A |
| Power Dissipation Pd | 600W |
| Stand-off Voltage | 20.5V |

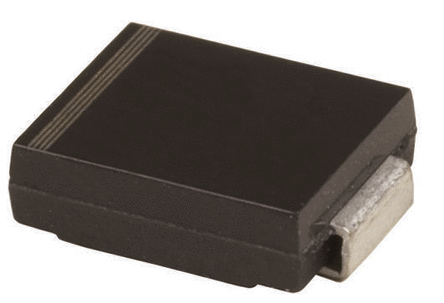

SM6T24CASTMicroelectronicsTVS Diodes
