Характеристики
| Product Range | Transil SM6T Series |
| TVS Polarity | Bidirectional |
| Reverse Stand-Off Voltage Vrwm | 6.4V |
| Clamping Voltage Vc Max | 14.5V |
| Diode Case Style | DO-214AA |
| No. of Pins | 2Pins |
| Breakdown Voltage Min | 7.13V |
| Breakdown Voltage Max | 7.88V |
| Peak Pulse Power Dissipation | 600W |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (15-Jan-2018) |
| Alternate Case Style | DO-214AA |
| Breakdown Voltage | 7.5V |
| Breakdown Voltage Range | 7.13V to 7.88V |
| Breakover Voltage Min | 7.13V |
| Capacitance Cd @ Vr Typ | 3700pF |
| Clamping Voltage @ 8/20µs Max | 14.5V |
| Current Ir Max | 10mA |
| Diode Type | Bidirectional TVS |
| Forward Surge Current Ifsm Max | 100A |
| Peak Pulse Current Ippm | 53A |
| Power Dissipation Pd | 600W |
| Reverse Leakage Current Max | 500µA |
| Reverse Voltage Vr Max | 6.4V |
| SMD Marking | LG |
| Stand-off Voltage | 6.4V |
| Uni / Bi Directional Polarity | Bidirectional |

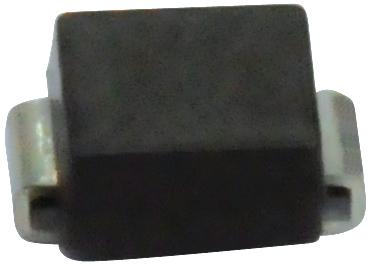

SM6T7V5CASTMicroelectronicsTVS Diodes
