Характеристики
| Product Range | SMAJ1 Series |
| TVS Polarity | Unidirectional |
| Reverse Stand-Off Voltage Vrwm | 12V |
| Clamping Voltage Vc Max | 25.3V |
| Diode Case Style | DO-214AC |
| No. of Pins | 2Pins |
| Breakdown Voltage Min | 13.3V |
| Breakdown Voltage Max | - |
| Peak Pulse Power Dissipation | 400W |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (15-Jan-2018) |
| Alternate Case Style | DO-214AC |
| Breakover Voltage Min | 13.3V |
| Capacitance Cd @ Vr Typ | 1325pF |
| Clamping Voltage @ 8/20µs Max | 25.3V |
| Current Ir Max | 1mA |
| Diode Type | Unidirectional TVS |
| External Depth | 5.6mm |
| External Length / Height | 2.9mm |
| External Width | 2.9mm |
| Forward Surge Current Ifsm Max | 40A |
| Peak Pulse Current Ippm | 91A |
| Power Dissipation Pd | 400W |
| Reverse Leakage Current Max | 5µA |
| Reverse Voltage Vr Max | 12V |
| SMD Marking | DUK |
| Stand-off Voltage | 12V |

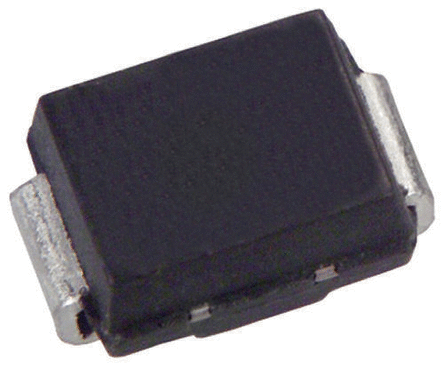

SMAJ12A-TRSTMicroelectronicsTVS Diodes
