Характеристики
| Product Range | TRANSZORB SMAJ Series |
| TVS Polarity | Bidirectional |
| Reverse Stand-Off Voltage Vrwm | 5V |
| Clamping Voltage Vc Max | 13.4V |
| Diode Case Style | DO-214AC |
| No. of Pins | 2Pins |
| Breakdown Voltage Min | 6.4V |
| Breakdown Voltage Max | - |
| Peak Pulse Power Dissipation | 400W |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (15-Jan-2018) |
| Alternate Case Style | DO-214AC |
| Breakover Voltage Min | 6.4V |
| Capacitance Cd @ Vr Typ | 3500pF |
| Clamping Voltage @ 8/20µs Max | 13.4V |
| Current Ir Max | 10mA |
| Diode Type | Bidirectional TVS |
| External Depth | 5.6mm |
| External Length / Height | 2.9mm |
| External Width | 2.9mm |
| Forward Surge Current Ifsm Max | 40A |
| Peak Pulse Current Ippm | 174A |
| Reverse Leakage Current Max | 800µA |
| Reverse Voltage Vr Max | 5V |
| SMD Marking | AA |
| Stand-off Voltage | 5V |
| Uni / Bi Directional Polarity | Bidirectional |

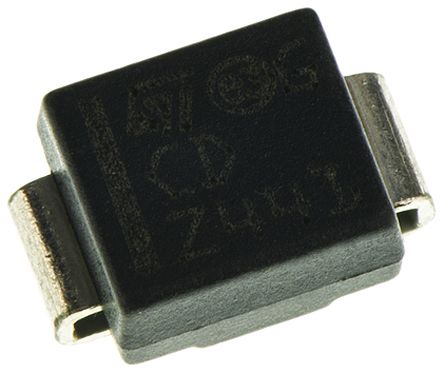

SMAJ5.0CA-TRSTMicroelectronicsTVS Diodes
