Характеристики AI
| Direction Type | Uni-Directional |
| Stand-off Voltage Max. | 250 V |
| Clamping Voltage | 405 V |
| Peak Pulse Power Dissipation | 600 W |
| Peak Pulse Current | 1.5 A |
| Breakdown Voltage Min. | 279 V |
| Breakdown Voltage Max. | 309 V |
| Operating Temperature Max. | 150 °C |
| Operating Temperature Min. | -65 °C |
| Reverse Leakage Current Max. | 1 uA |
| Voltage ESD Air Gap Max. | 30 kV |
| Package Type | DO-214AA |

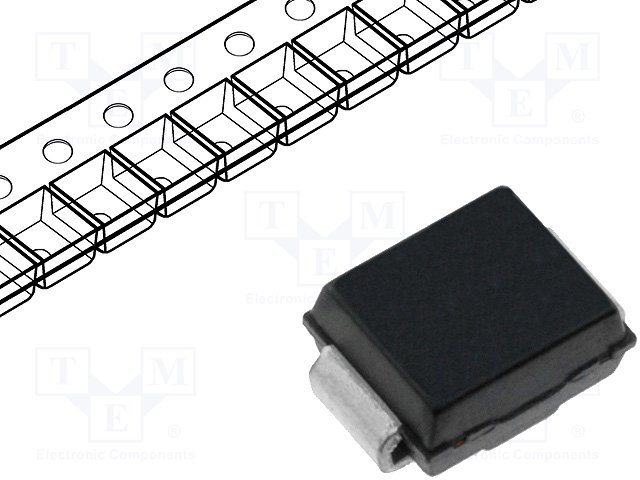

SMBJ250ALittelfuseTVS Diodes
