Характеристики
| Product Range | Transil SMBJ Series |
| TVS Polarity | Unidirectional |
| Reverse Stand-Off Voltage Vrwm | 33V |
| Clamping Voltage Vc Max | 69.7V |
| Diode Case Style | DO-214AA |
| No. of Pins | 2Pins |
| Breakdown Voltage Min | 36.7V |
| Breakdown Voltage Max | 38.6V |
| Peak Pulse Power Dissipation | 600W |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (15-Jan-2018) |
| Alternate Case Style | DO-214AA |
| Breakover Voltage Min | 36.7V |
| Capacitance Cd @ Vr Typ | 900pF |
| Clamping Voltage @ 8/20µs Max | 69.7V |
| Diode Type | Unidirectional TVS |
| External Depth | 3.56mm |
| External Length / Height | 2.44mm |
| External Width | 5.59mm |
| Peak Pulse Current Ippm | 11.3A |
| Power Dissipation Pd | 6W |
| Reverse Leakage Current Max | 1µA |
| SMD Marking | BUN |
| Stand-off Voltage | 33V |
| Test Current | 1mA |

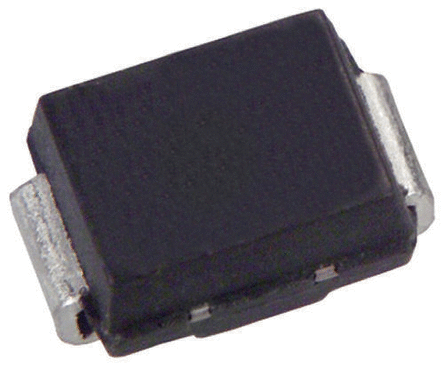

SMBJ33A-TRSTMicroelectronicsTVS Diodes
