Характеристики
| Product Range | Transil SMP100LC Series |
| TVS Polarity | Bidirectional |
| Reverse Stand-Off Voltage Vrwm | 22V |
| Clamping Voltage Vc Max | - |
| Diode Case Style | DO-214AA |
| No. of Pins | 2Pins |
| Breakdown Voltage Min | - |
| Breakdown Voltage Max | 40V |
| Peak Pulse Power Dissipation | - |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (15-Jan-2018) |
| Alternate Case Style | DO-214AA |
| Breakdown Current Ibo | 800mA |
| Capacitance Cd @ Vr Typ | 65pF |
| Current Ir Max | 2µA |
| Current Itsm | 24A |
| Diode Type | Bidirectional TVS |
| Forward Surge Current Ifsm Max | 100A |
| Holding Current Max Ih | 150mA |
| Itsm Frequency | 50Hz |
| Peak Pulse Current IPP @ 8/20µs | 400A |
| Peak Pulse Current Ippm | 100A |
| Reverse Leakage Current Max | 2µA |
| Reverse Voltage Vr Max | 25V |
| SMD Marking | L25 |
| Stand-off Voltage | 22V |

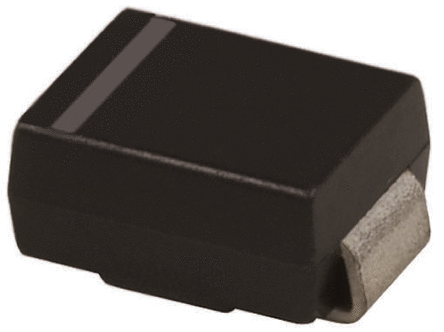

SMP100LC-25STMicroelectronicsThyristors
