Характеристики
| Logic Family / Base Number | 74AC14 |
| Logic Type | Inverter Schmitt Trigger |
| Output Current | 24mA |
| No. of Inputs | 1 |
| Supply Voltage Min | 2V |
| Supply Voltage Max | 6V |
| Logic Case Style | SOIC |
| No. of Pins | 14Pins |
| Logic IC Family | 74AC |
| Logic IC Base Number | 7414 |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
| SVHC | No SVHC (27-Jun-2018) |
| Base Number | 74 |
| IC Generic Number | 74AC14 |
| Logic Function Number | 7414 |
| Logic IC Base Number | 7414 |
| Logic IC Function | Hex Inverter with Schmitt Trigger |
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage Range | 2V to 6V |

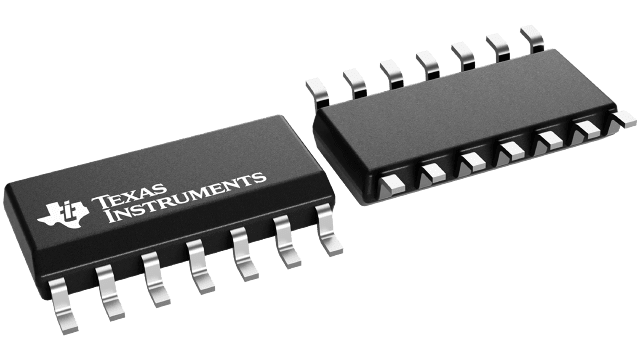

SN74AC14DTexas InstrumentsLogic Gates
