Характеристики
| Logic Family / Base Number | 74HC138 |
| Logic Type | Decoder / Demultiplexer |
| No. of Outputs | 8Outputs |
| Logic Case Style | SOIC |
| No. of Pins | 16Pins |
| Supply Voltage Min | 2V |
| Supply Voltage Max | 6V |
| Logic IC Family | 74HC |
| Logic IC Base Number | 74138 |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
| SVHC | No SVHC (27-Jun-2018) |
| Applications | Data Transmission Systems, Memory Decoders |
| Base Number | 74 |
| IC Applications | Data Transmission Systems, Memory Decoders |
| IC Generic Number | 74HC138 |
| Logic Function Number | 138 |
| Logic IC Base Number | 74138 |
| Logic IC Function | 138 |
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage | 5V |
| Supply Voltage Range | 2V to 6V |

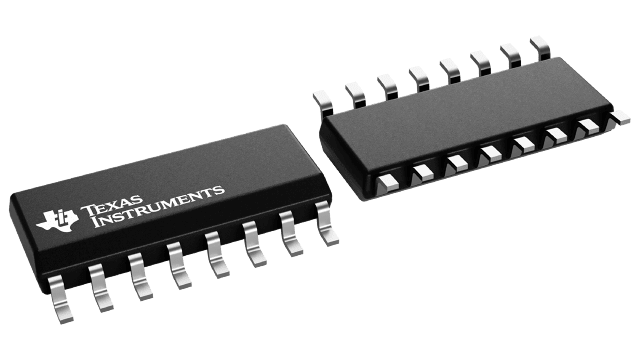

SN74HC138DTexas InstrumentsDecoders and Multiplexers
