Характеристики
| Logic Family / Base Number | 74LS247 |
| Logic Type | BCD to 7 Segment Decoder / Driver |
| No. of Outputs | 7Outputs |
| Logic Case Style | DIP |
| No. of Pins | 16Pins |
| Supply Voltage Min | 4.75V |
| Supply Voltage Max | 5.25V |
| Logic IC Family | 74LS |
| Logic IC Base Number | 74247 |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | - |
| SVHC | No SVHC (27-Jun-2018) |
| Applications | Driving Indicators |
| Base Number | 74 |
| IC Applications | Driving Indicators |
| IC Generic Number | 74LC247 |
| IC Temperature Range | Commercial |
| Logic Function Number | 74247 |
| Logic IC Base Number | 74247 |
| Logic IC Function | BCD-to-Seven-Segment Decoders/Drivers |
| Operating Temperature Range | 0°C to +70°C |
| Output Current Max | 3.2mA |
| Supply Voltage Range | 4.75V to 5.25V |

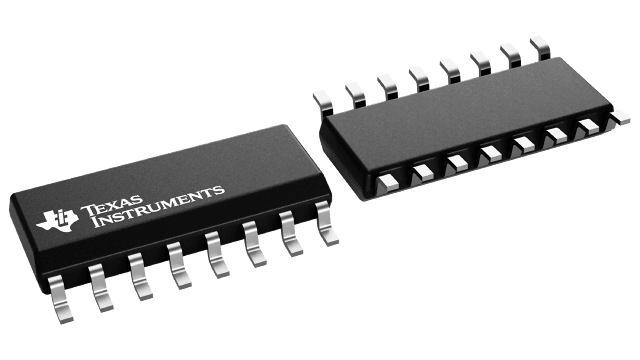

SN74LS247NTexas InstrumentsDisplay Drivers
