Характеристики
| Logic Family / Base Number | 74LV14 |
| Logic Type | Inverter |
| Output Current | 12mA |
| No. of Inputs | 6 |
| Supply Voltage Min | 2V |
| Supply Voltage Max | 5.5V |
| Logic Case Style | SOIC |
| No. of Pins | 14Pins |
| Logic IC Family | 74LV |
| Logic IC Base Number | 7414 |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
| SVHC | No SVHC (15-Jan-2019) |
| Base Number | 74 |
| Logic Function Number | 7414 |
| Logic IC Base Number | 7414 |
| Logic IC Function | Hex Inverter with Schmitt Trigger |
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage Range | 2V to 5.5V |

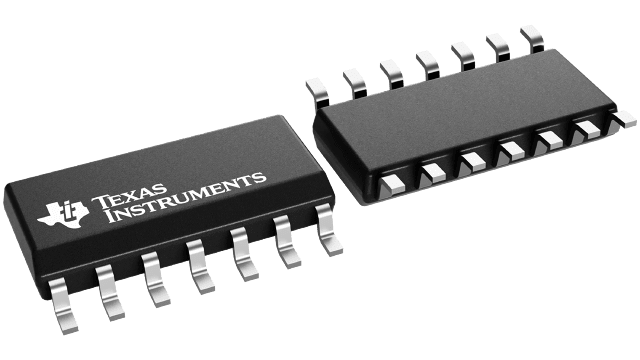

SN74LV14ADTexas InstrumentsLogic Gates
