Характеристики
| Logic Family / Base Number | 74LVC1G00 |
| Logic Type | NAND |
| Output Current | 32mA |
| No. of Inputs | 2 |
| Supply Voltage Min | 1.65V |
| Supply Voltage Max | 5.5V |
| Logic Case Style | SOT-23 |
| No. of Pins | 5Pins |
| Logic IC Family | 74LVC |
| Logic IC Base Number | 741G00 |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
| MSL | MSL 1 - Unlimited |
| SVHC | No SVHC (27-Jun-2018) |
| Base Number | 74 |
| Logic Function Number | 741G00 |
| Logic IC Base Number | 741004 |
| Logic IC Function | Single 2-Input NAND Gate |
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage | 6.5V |
| Supply Voltage Range | 1.65V to 5.5V |
| Termination Type | Surface Mount Device |

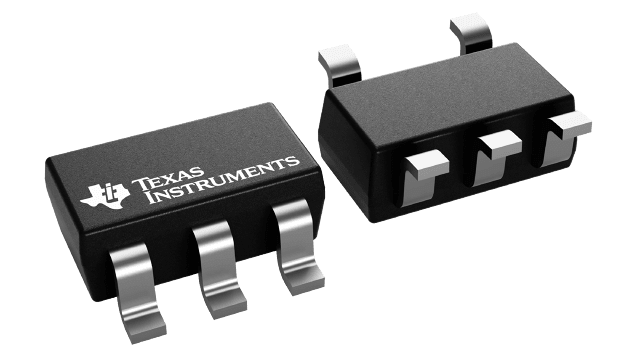

SN74LVC1G00DBVRTexas InstrumentsLogic Gates
