Характеристики
| Inductance uH | 3.3 |
| Tolerance | ±20 % |
| Core | Iron Powder |
| Maximum DC Resistance mOhm | 38 |
| Rated Current A | 5 |
| Shielding | Shielded |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 125 |
| Pins | 2 |
| Termination Type | Soldering Pads |
| Series | SRP5030T |
| Length mm | 5.7 |
| Width mm | 5.2 |
| Height mm | 2.8 |
| Packaging | Tape & Reel |

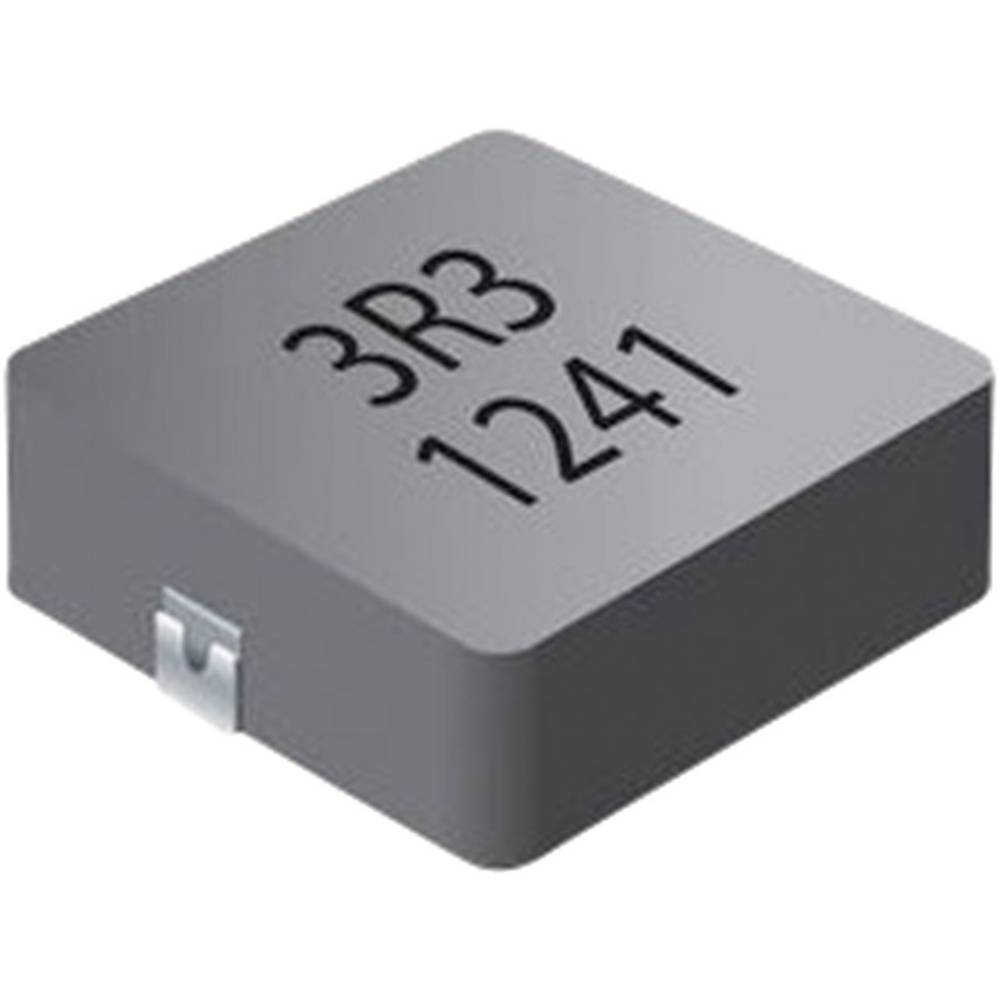

SRP5030T-3R3MBournsFixed Inductors
