Характеристики
| Rated inductance | 15 |
| Inductance uH | 15 |
| Tolerance | ±20 % |
| Core | Ferrite |
| Maximum DC Resistance mOhm | 27 |
| Rated Current A | 5 |
| Self-Resonant Frequency MHz | 17.6 |
| Shielding | Shielded |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 125 |
| Pins | 2 |
| Termination Type | Soldering |
| Package Type | SMD |
| Series | SRR1260 |
| Length mm | 12.5 |
| Width mm | 12.5 |
| Height mm | 6 |
| Packaging | Tape & Reel |

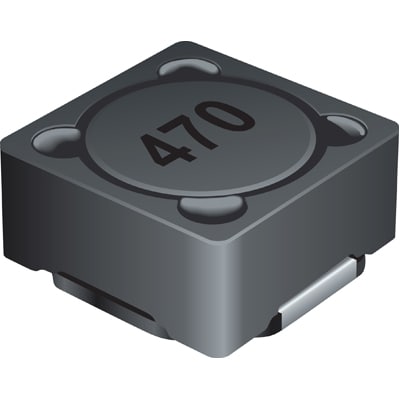

SRR1260-150MBournsFixed Inductors
