Характеристики
| Memory Size MB | 8 |
| Interfaces | SPI |
| Block Organization | Symmetric |
| Timing Type | Synchronous |
| Programming Time | 7 us |
| Access Time ns | 8 |
| Supply Current mA | 30 |
| Supply Voltage Min. V | 2.7 |
| Supply Voltage Max. V | 3.6 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |
| Package Type | SOIJ |
| Pins | 8 |
| Mounting Type | SMD |
| Packaging | Tube |
| Length mm | 5.4 |
| Width mm | 5.4 |
| Height mm | 1.9 |
| Reflow Temperature Max. °C | 260 |
| Chip Erase Time ms | 35 |

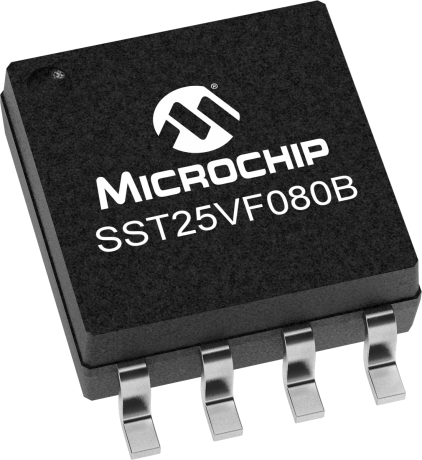

SST25VF080B-50-4I-S2AEMicrochipFlash
