Характеристики
| Transistor Polarity | N Channel |
| Continuous Drain Current Id | 30A |
| Drain Source Voltage Vds | 55V |
| On Resistance Rds(on) | 0.012ohm |
| Rds(on) Test Voltage Vgs | 10V |
| Threshold Voltage Vgs | 2V |
| Power Dissipation Pd | 110W |
| Transistor Case Style | TO-252 |
| No. of Pins | 3Pins |
| Operating Temperature Max | 175°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
| SVHC | No SVHC (17-Dec-2015) |
| Current Id Max | 60A |
| Operating Temperature Min | -55°C |
| Operating Temperature Range | -55°C to +175°C |
| Termination Type | Surface Mount Device |
| Transistor Type | Power MOSFET |
| Voltage Vds Typ | 55V |
| Voltage Vgs Max | 15V |
| Voltage Vgs Rds on Measurement | 10V |

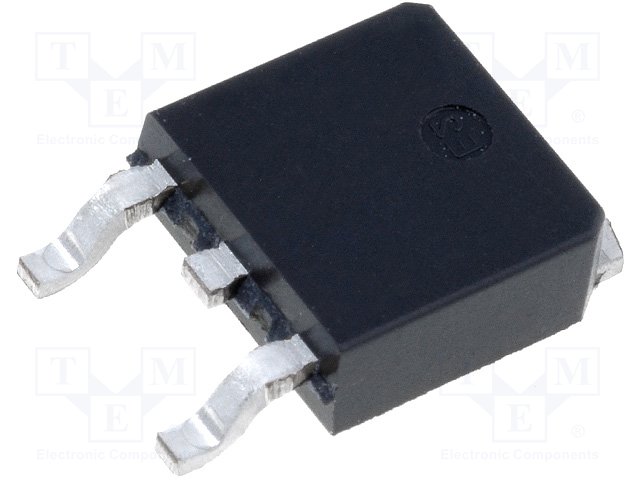

STD60NF55LT4STMicroelectronicsMOSFETs
