Характеристики
| Transistor Polarity | N Channel |
| Continuous Drain Current Id | 3A |
| Drain Source Voltage Vds | 100V |
| On Resistance Rds(on) | 0.22ohm |
| Rds(on) Test Voltage Vgs | 10V |
| Threshold Voltage Vgs | 4V |
| Power Dissipation Pd | 30W |
| Transistor Case Style | TO-252 |
| No. of Pins | 3Pins |
| Operating Temperature Max | 175°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
| SVHC | No SVHC (17-Dec-2015) |
| Current Id Max | 6A |
| Operating Temperature Min | -65°C |
| Operating Temperature Range | -65°C to +175°C |
| Termination Type | Surface Mount Device |
| Transistor Type | Power MOSFET |
| Voltage Vds Typ | 100V |
| Voltage Vgs Max | 20V |
| Voltage Vgs Rds on Measurement | 10V |

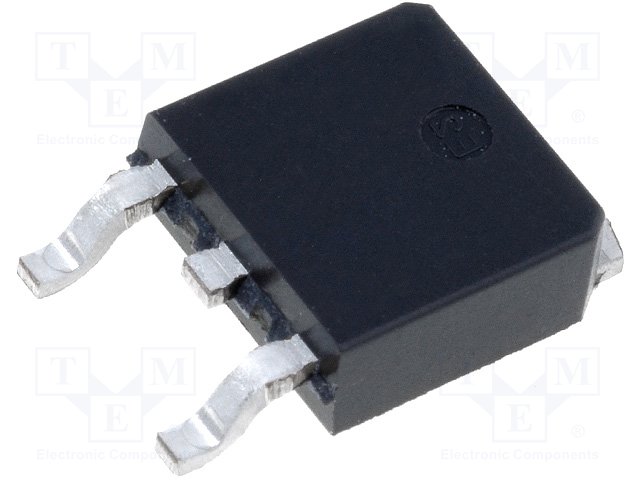

STD6NF10T4STMicroelectronicsMOSFETs
