Характеристики
| Device Core | ARM® Cortex® M3 |
| Data Bus Width bit | 32 |
| Instruction Set Architecture | RISC |
| Family Name | STM32 |
| Clock Frequency Max. MHz | 24 |
| Program Memory Type | Flash |
| Program Memory Size kB | 64 |
| Data Memory Size kB | 64 |
| RAM Memory Size kB | 8 |
| Interfaces | I²C |
| Interfaces | SPI |
| Interfaces | USART |
| ADC Channels | 10 |
| ADC Resolution bit | 12 |
| DAC Resolution bit | 12 |
| Os | 37 |
| Counters | 7 |
| Supply Voltage Min. V | 2 |
| Supply Voltage Max. V | 3.6 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |
| Package Type | LQFP |
| Pins | 48 |
| Mounting Type | SMD |
| Packaging | Tray |
| Length mm | 9 |
| Width mm | 9 |
| Height mm | 1.6 |

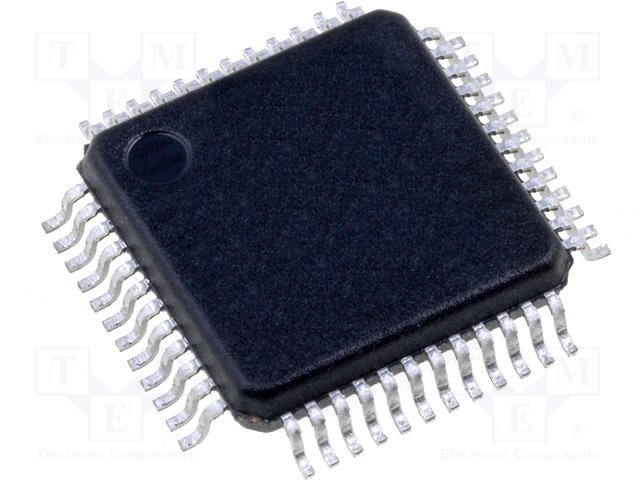

STM32F100C8T6BSTMicroelectronicsMicrocontrollers
