Характеристики
| Transistor Polarity | N Channel |
| Continuous Drain Current Id | 60A |
| Drain Source Voltage Vds | 30V |
| On Resistance Rds(on) | 3.2mohm |
| Rds(on) Test Voltage Vgs | 10V |
| Threshold Voltage Vgs Typ | 4V |
| Power Dissipation Pd | 300W |
| Operating Temperature Range | -55°C to +175°C |
| Transistor Case Style | TO-220 |
| No. of Pins | 3 |
| SVHC | No SVHC (19-Dec-2011) |
| Current Id Max | 120A |
| Package / Case | TO-220 |
| Power Dissipation Pd | 300W |
| Termination Type | Through Hole |
| Transistor Type | Power MOSFET |
| Voltage Vds Typ | 30V |
| Voltage Vgs Max | 20V |
| Voltage Vgs Rds on Measurement | 10V |

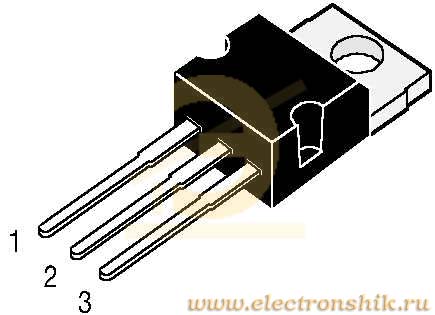

STP200NF03STMicroelectronicsMOSFETs
