Характеристики
| Track Resistance | 500kohm |
| No. of Turns | 13 |
| Resistance Tolerance | ± 10% |
| Series | T63 |
| Temperature Coefficient | ± 100ppm/°C |
| Power Rating | 250mW |
| Mounting Type | Through Hole |
| SVHC | No SVHC |
| Resistor Element Type | Variable Rotary Cermet |
| Adjustment Type | Top |
| Case Style | PCB Mount |
| Contact Resistance Variation + | 2% |
| End Resistance | 1ohm |
| External Length / Height | 6.8mm |
| Full Power Rating Temperature | 85°C |
| IP Rating | IP67 |
| Lead Diameter | 0.45mm |
| Max Operating Temperature | 155°C |
| Min Temperature Operating | -55°C |
| Operating Temperature Range | -55°C to +155°C |
| Proof Voltage | 1000V |
| Resistance | 500kohm |
| Temperature Coeff. - | 100ppm/°C |
| Tempperature Coeff. + | 100ppm/°C |
| Terminal Type | PCB Terminals |
| Termination Type | Radial Leaded |
| Tolerance, + | 10% |
| Tolerance, - | 10% |
| Track Taper | Linear |
| Voltage Rating | 250V dc |
| Voltage Rating DC | 250V |
| Resistor Case Style | PCB Mount |

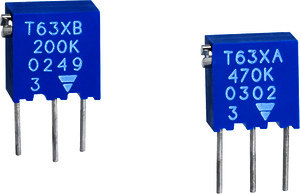

T63YB504KT20VishayVariable Resistors and Potentiometers
