Характеристики
| Track Resistance | 2.2kohm |
| No. of Turns | 1 |
| Resistance Tolerance | ± 20% |
| Series | T7 |
| Temperature Coefficient | ± 100ppm/°C |
| Power Rating | 500mW |
| Mounting Type | Through Hole |
| SVHC | No SVHC |
| Resistor Element Type | Variable Rotary Cermet |
| Adjustment Type | Top |
| Body Diameter | 7.0mm |
| Case Style | PCB Mount |
| Contact Resistance Variation + | 3% |
| Dielectric Strength, VAC | 1000V |
| End Resistance | 1ohm |
| External Length / Height | 6.0mm |
| Full Power Rating Temperature | 85°C |
| IP Rating | IP64 |
| Insulation Resistance | 1000000Mohm |
| Lead Diameter | 1mm |
| Lead Length | 4.5mm |
| Max Operating Temperature | 125°C |
| Min Temperature Operating | -55°C |
| Operating Temperature Range | -55°C to +125°C |
| Resistance | 2.2kohm |
| Temperature Coeff. - | 100ppm/°C |
| Tempperature Coeff. + | 100ppm/°C |
| Terminal Type | PCB Terminals |
| Termination Type | Radial Leaded |
| Tolerance, + | 20% |
| Tolerance, - | 20% |
| Track Taper | Linear |
| Voltage Rating | 250V dc |
| Voltage Rating DC | 250V |
| Resistor Case Style | PCB Mount |
| Rotation Mechanical Angle | 300° |

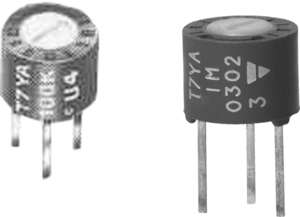

T7YA222MB40VishayVariable Resistors and Potentiometers
