Характеристики
| No. of Channels | 1 |
| Isolation Voltage | 5kV |
| Optocoupler Output Type | Phototransistor |
| Input Current | 50mA |
| Output Voltage | 70V |
| Opto Case Style | DIP |
| No. of Pins | 4 |
| SVHC | No SVHC (20-Jun-2011) |
| Approval Bodies | VDE, CSA, BSI EN 60065:2002, EN 60950:2000, DIN EN 60747-5-2, FIMKO |
| Approval Category | UL Recognised |
| Collector Emitter Voltage V(br)ceo | 70V |
| Collector Emitter Voltage Vces | 0.3V |
| Current If CTR | 1mA |
| Current Transfer Ratio Min | 34% |
| Current Transfer Ratio Typ | 70% |
| External Depth | 6.3mm |
| External Length / Height | 4.4mm |
| External Width | 4.75mm |
| Fall Time tf | 4.7µs |
| Forward Voltage VF Max | 1.6V |
| Lead Spacing | 2.54mm |
| Operating Temperature Range | -40°C to +100°C |
| Output Type | Phototransistor |
| Peak Forward Current | 130mA |
| Power Ouput Dissipation | 265mW |
| Rise Time | 3µs |
| Row Pitch | 9mm |
| Standard | Leadform 9mm |
| Supply Voltage | 5V |
| Voltage Vf Typ | 1.25V |

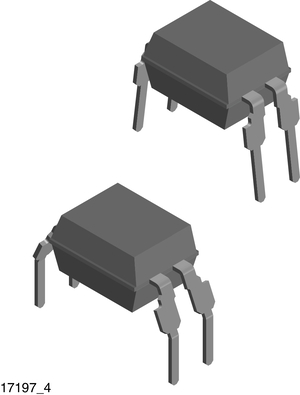

TCET1103VishayOptocouplers
