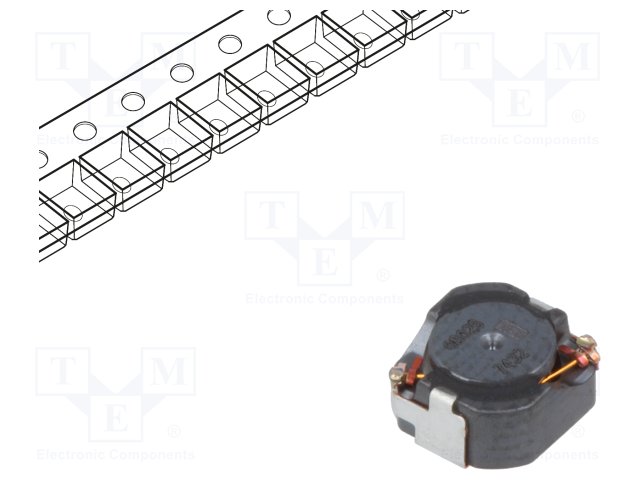

TCK-150
Traco Power
Fixed Inductors
Характеристики
| Inductance uH | 68 |
| Tolerance | ±20 % |
| Maximum DC Resistance mOhm | 636 |
| Rated Current mA | 590 |
| Shielding | Unshielded |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 125 |
| Pins | 2 |
| Termination Type | Wraparound |
| Package Type | SMD |
| Series | TCK |
| Length mm | 5.3 |
| Width mm | 5 |
| Height mm | 2.7 |
