Характеристики
| No. of Channels | 1 |
| Isolation Voltage | 5kV |
| Optocoupler Output Type | Phototransistor |
| Input Current | 50mA |
| Output Voltage | 70V |
| Opto Case Style | SOP |
| No. of Pins | 4 |
| SVHC | No SVHC (20-Jun-2011) |
| Approval Bodies | BSI, DIN & FIMKO (SETI) |
| Collector Emitter Voltage V(br)ceo | 70V |
| Continuous Collector Current Ic Max | 50mA |
| Current Ic Continuous a Max | 50mA |
| Current Transfer Ratio Max | 160% |
| Current Transfer Ratio Min | 80% |
| External Depth | 38mm |
| External Length / Height | 2.0mm |
| External Width | 7.5mm |
| Fall Time tf | 5µs |
| Forward Voltage VF Max | 1.6V |
| Lead Spacing | 10.2mm |
| Operating Temperature Range | -40°C to +100°C |
| Output Type | Phototransistor |
| Power Dissipation Pd | 250mW |
| Power Dissipation Pd | 250mW |
| Rise Time | 6µs |
| Row Pitch | 2.54mm |

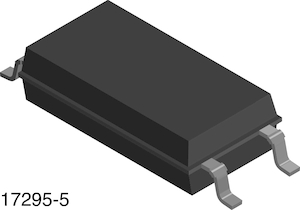

TCLT1007VishayOptocouplers
