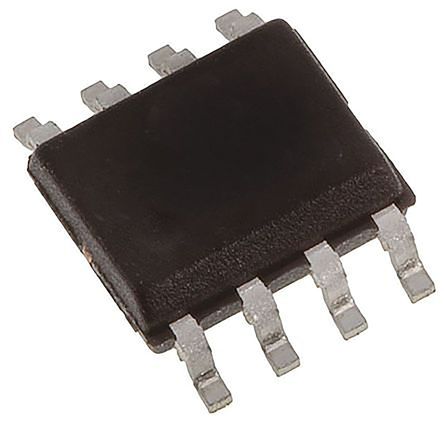

TL072CD
Amplifiers - Op Amps, Buffer, Instrumentation
Slew Rate V / Voltage Gain mV / Input Voltage Noise Density nV
Характеристики
| Amplifier Type | JFET |
| Gain Bandwidth MHz | 4 |
| us | 16 |
| Input Offset Voltage mV | 3 |
| Input Bias Current pA | 20 |
| Amplifiers | 2 |
| Common Mode Rejection Ratio (CMRR) dB | 70 |
| Power Supply Rejection Ratio (PSRR) dB | 70 |
| V | 200 |
| √Hz | 15 |
| Supply Current mA | 1.4 |
| Single Supply Voltage Min. V | 6 |
| Single Supply Voltage Max. V | 36 |
| Operating Temperature Min. °C | 0 |
| Operating Temperature Max. °C | 70 |
| Package Type | SOIC |
| Pins | 8 |
| Mounting Type | SMD |
| MSL | Level-1 |
| Packaging | Tube |
| Length mm | 4.9 |
| Width mm | 3.9 |
| Height mm | 1.25 |
| Power Supply Type | Single |
| Reflow Temperature Max. °C | 260 |
TL072CDSTMicroelectronicsAmplifiers - Op Amps, Buffer, Instrumentation
