Характеристики
| Voltage regulator type | Precision Shunt Regulator |
| Voltage, output max | 36V |
| Current, output max | 100mA |
| Temperature, operating range | -40°C to +85°C |
| Temp, op. max | 85°C |
| Temp, op. min | -40°C |
| Base number | 431 |
| Case style | DIP |
| IC Generic number | 431 |
| Logic function number | 431 |
| Pins, No. of | 8 |
| Voltage, Vcc | 3.3V |
| Voltage, output min | 2.495V |
| Accuracy | 0.5 |
| Temperature coefficient | 34ppm/°C |
| Voltage, Vcc max | 3.45V |
| Voltage, Vcc min | 3.15V |

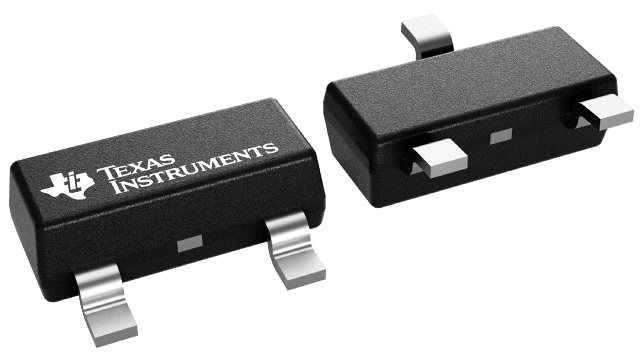

TL431BIPTexas InstrumentsVoltage References
